Features: Professional application in high-purity semiconductor industry, also suitable for ultrapure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between -40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance. The sleeve-insert connection method can ensure sealing performance under higher pressure.
Material: PFA (body, sleeve, nuts are all PFA)
Interface form: sleeve-insert connection
Maximum operating temperature: 200 ℃
Maximum operating pressure: 0.86MPa
PFA Sleeve-insert Union Elbow - UEA-3
Features: Professional application in high-purity semiconductor industry, also suitable for ultrapure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between -40 ℃ and 200 ℃, and has good mechanical characteristics and wear resistance. The sleeve-insert connection method can ensure sealing performance under higher pressure.
Material: PFA (body, sleeve, nuts are all PFA)
Interface form: sleeve-insert connection
Maximum operating temperature: 200 ℃
Maximum operating pressure: 0.86MPa

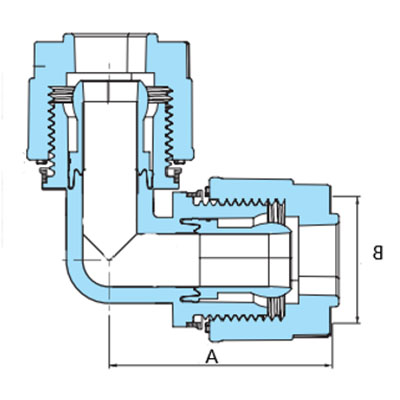

| Part No. | Tube OD | Orifice | A | B |
| (inch) | (mm) | (mm) | (mm) | |
| UEA023 | 1/8" | 2.10 | 23.00 | 12.00 |
| UEA043 | 1/4" | 4.00 | 30.00 | 16.00 |
| UEA063 | 3/8" | 8.00 | 39.50 | 23.00 |
| UEA083 | 1/2"* | 10.00 | 45.50 | 28.00 |
| UEA123 | 3/4" | 16.00 | 57.00 | 38.00 |
| UEA163 | 1" | 22.00 | 69.50 | 47.50 |
| UEA203 | 1-1/4" | 28.00 | 99.00 | 62.00 |
| UEA243 | 1-1/2" | 33.70 | 106.00 | 69.00 |
